CoeLux® LS ICE
A frame with an aluminium finish outlines the CoeLux LS Ice system, an artificial window with an elongated shape and a large portion of the perceived sky.

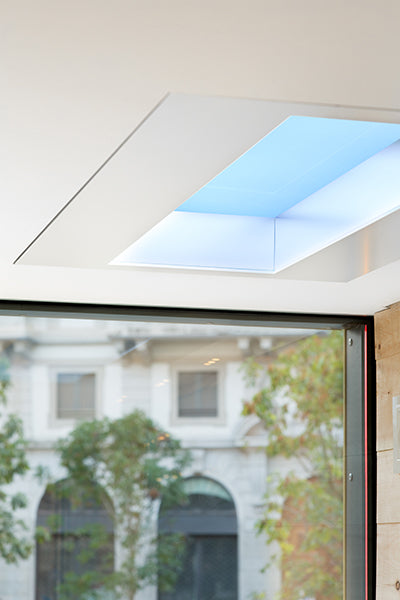

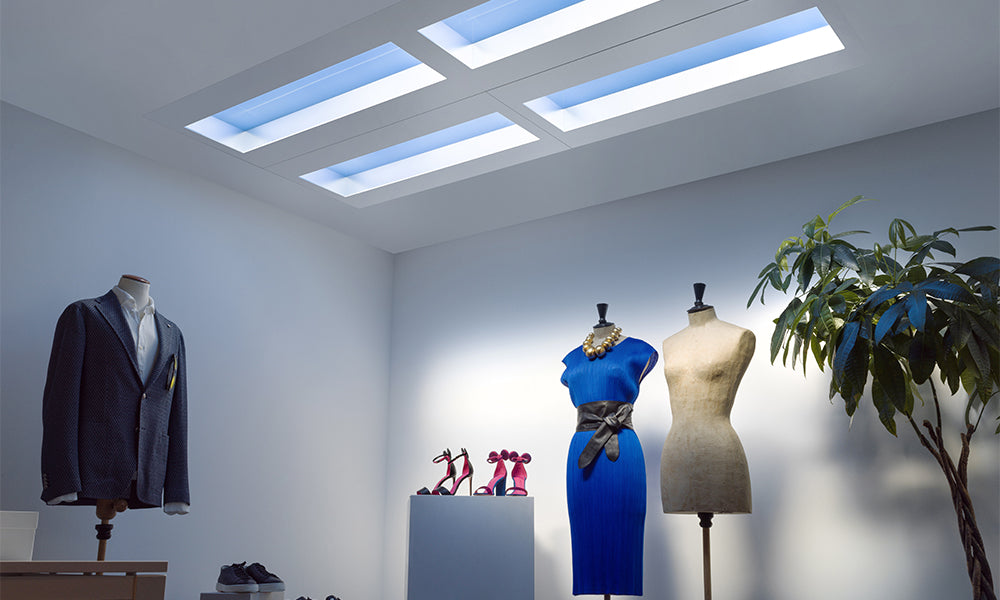

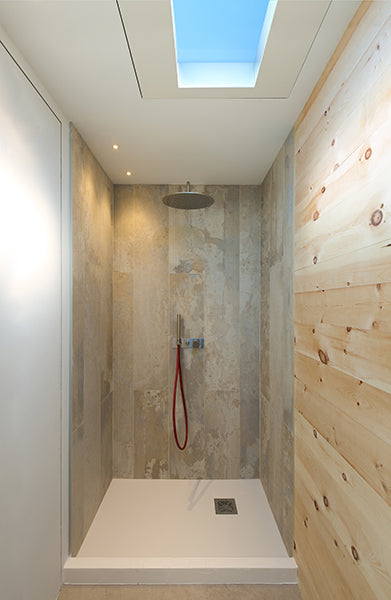

CoeLux® LS Ice is the brightest window in the LS (Long sky) family, from which a blue sky and a sun with shaded outlines can be seen. It is a ceiling system that can be installed individually or in modular compositions. It has a 10 cm high aluminium finish frame on which the blue light of the sky and intense light from the CoeLux sun are reflected. This effect gives the observer the perception of a larger portion of the sky, making the surrounding environment very bright. Perceived at an infinite distance, the sun of CoeLux LS Ice diffuses a beam of light at 45 degrees that reflect on the frame, creating a slight beam in the opposite direction.
CoeLux LS Ice is dimmable and allows you to set the intensity of the light according to the needs of the user, recreating a natural and comfortable atmosphere. Easy to install, you can access the system through the frame.

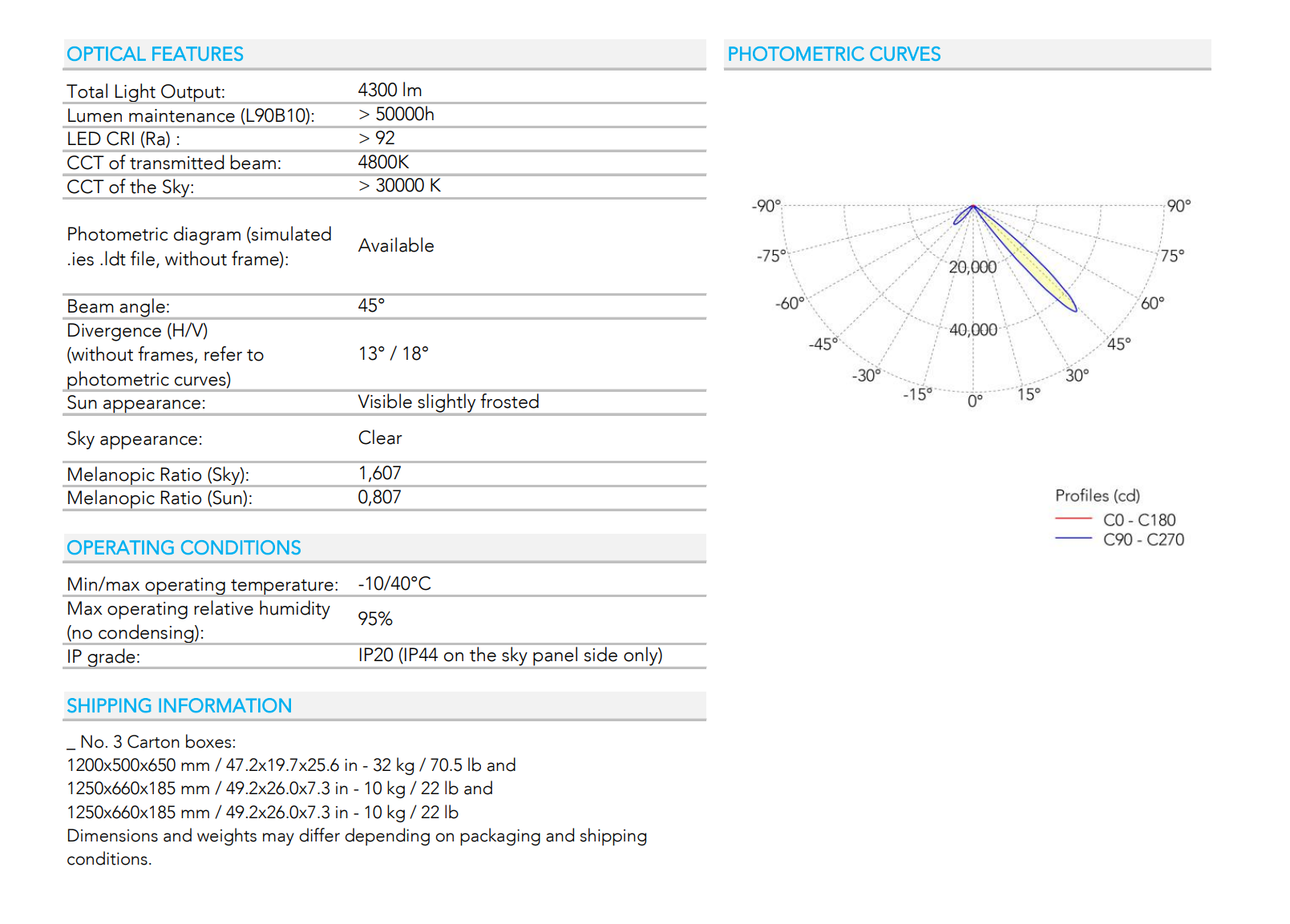

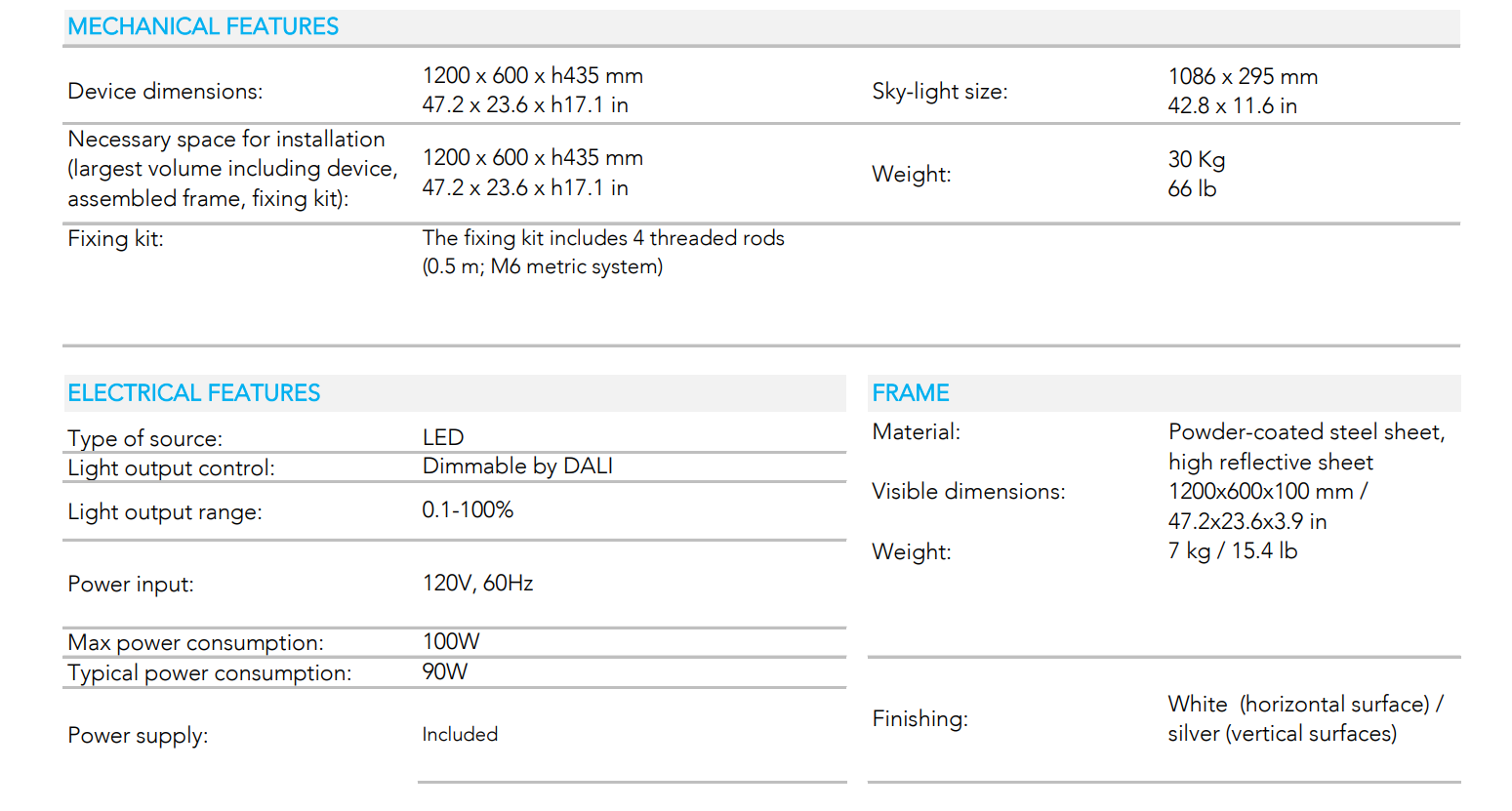

Specifications

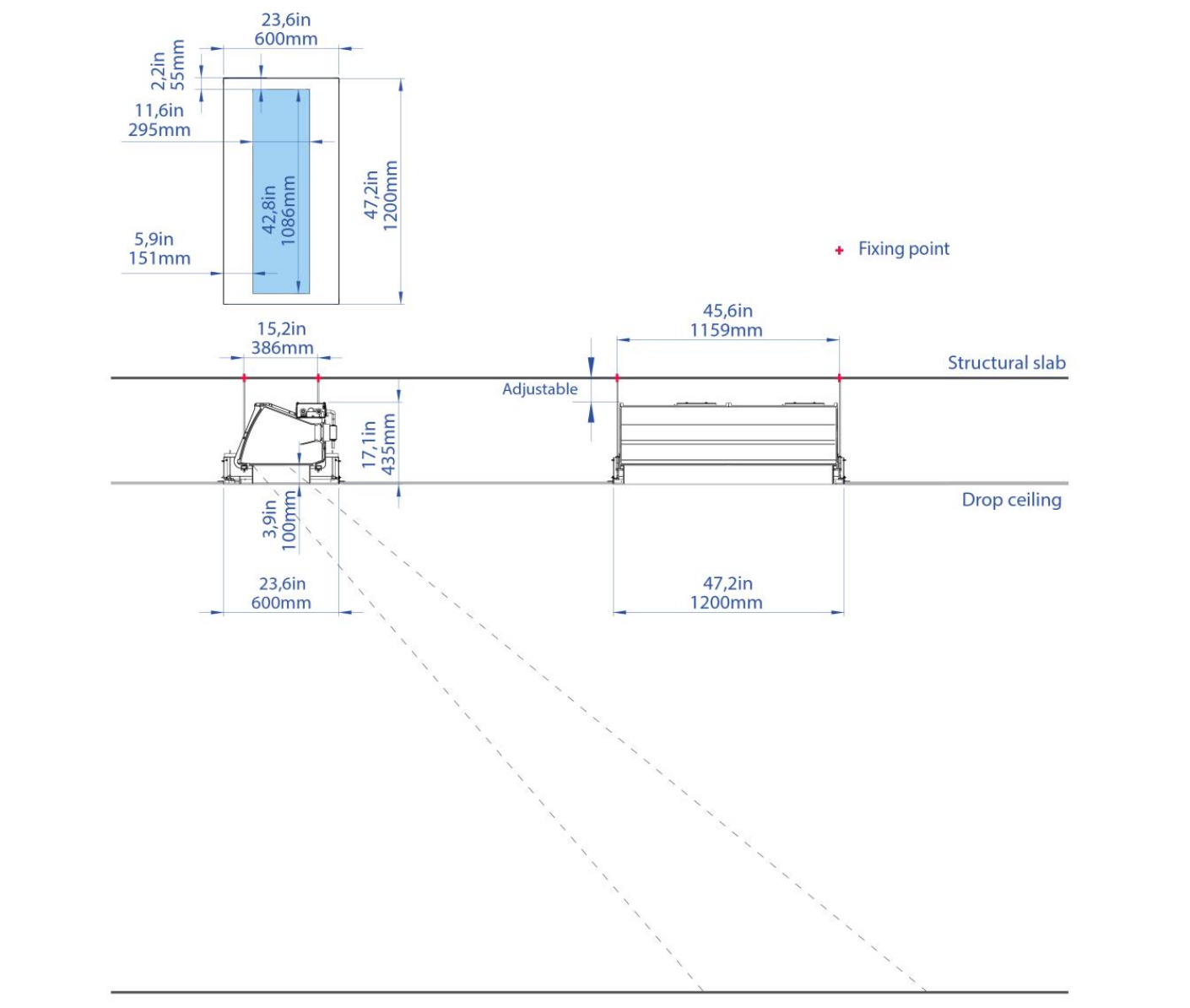

Device dimension | 1200*600*h435mm |
Sky-light size | 1086*295mm |
Frame visible dimension | 1200*600*h130mm |
Weight | 30Kg |
Frame color |
White |
Light source | LED 100W / 3300lm |
Light output control |
Dimmable by DALI, 0.1-100% |
CCT CRI (Ra) |
>92 |
CCT transmitted beam | 4800K |
Lumen maintenance (LM70) |
>50000h |
Light beam angle |
45 |
IP grade |
IP20 (IP44 on the sky panel side only) |
