CoeLux® LS Array

by CoeLux
Original price $11,520.00 - Original price $11,520.00
Original price
$11,520.00 - $11,520.00
Current price $11,520.00

CoeLux® LS Array

Observing the layout of the CoeLux LS Array and moving in the space below, a sun with shaded outlines seems to follow the observer: a play of optics creates the illusion of a slight movement that gives realism to the system.

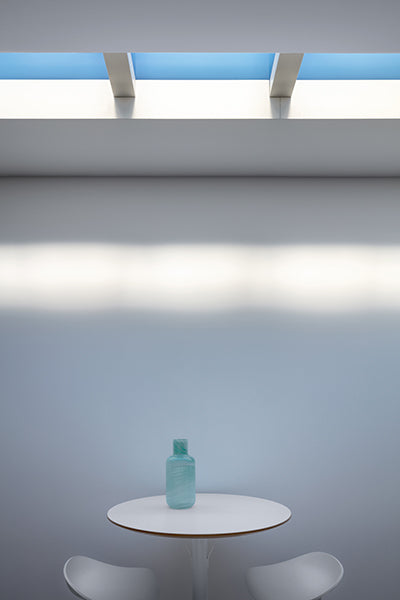

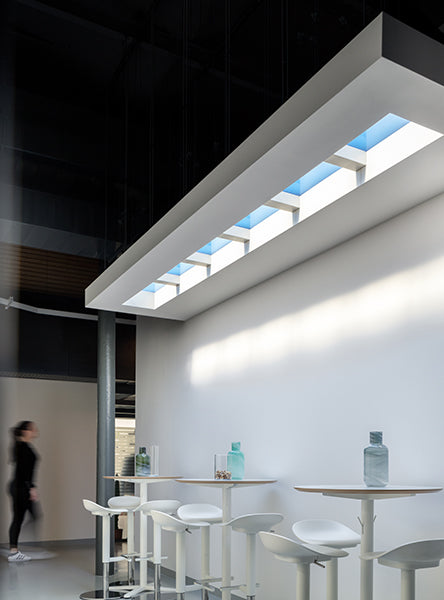

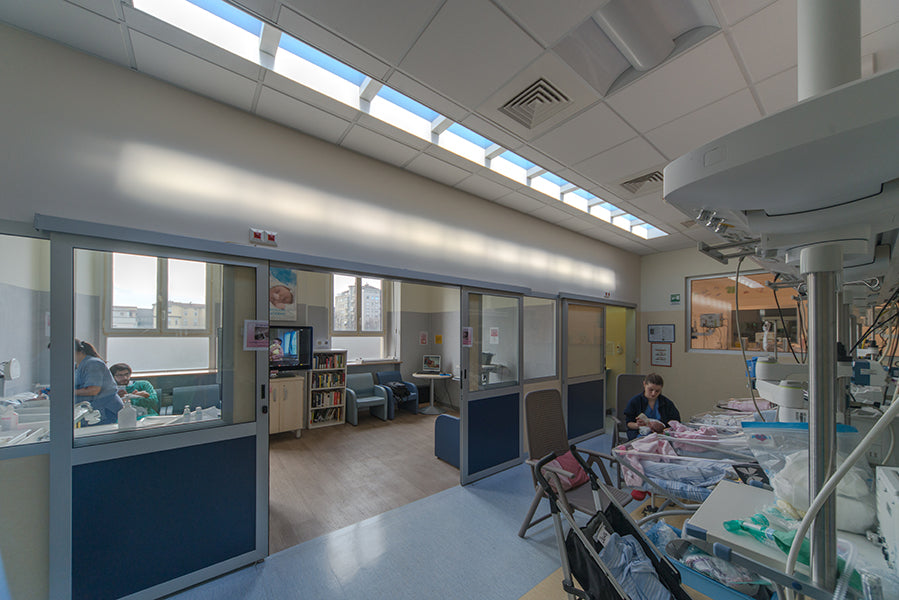

The infinite modularity of CoeLux LS Array allows you to create long corridors of sky. Each module is interrupted by a small geometric element that divides the window into two equal parts. The light spot on the wall, interspersed with small areas of shadow, gives an extremely realistic effect to the composition.

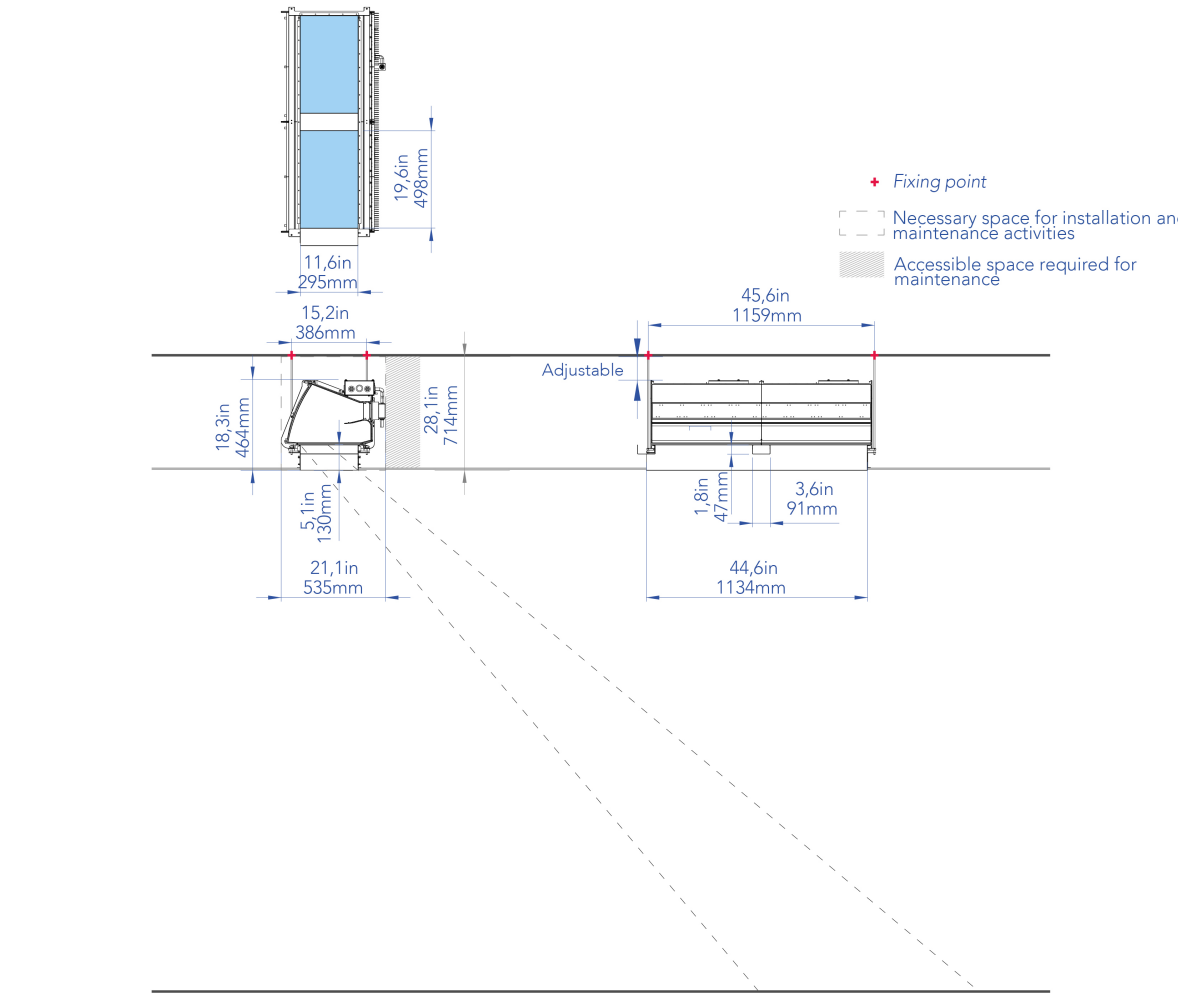

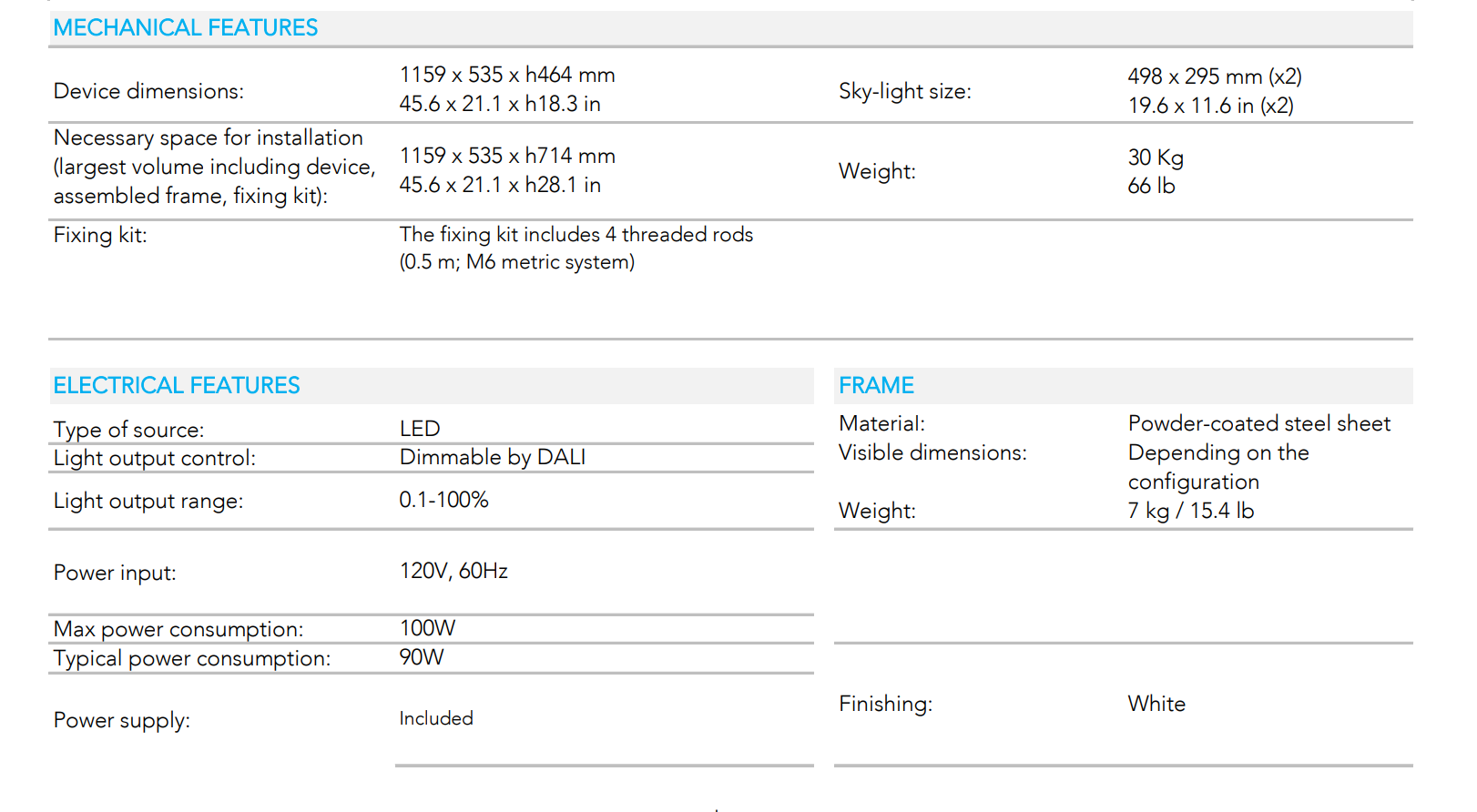

Device dimensions 1159*500*460mm
Sky-light size 498*295mm
Frame color White

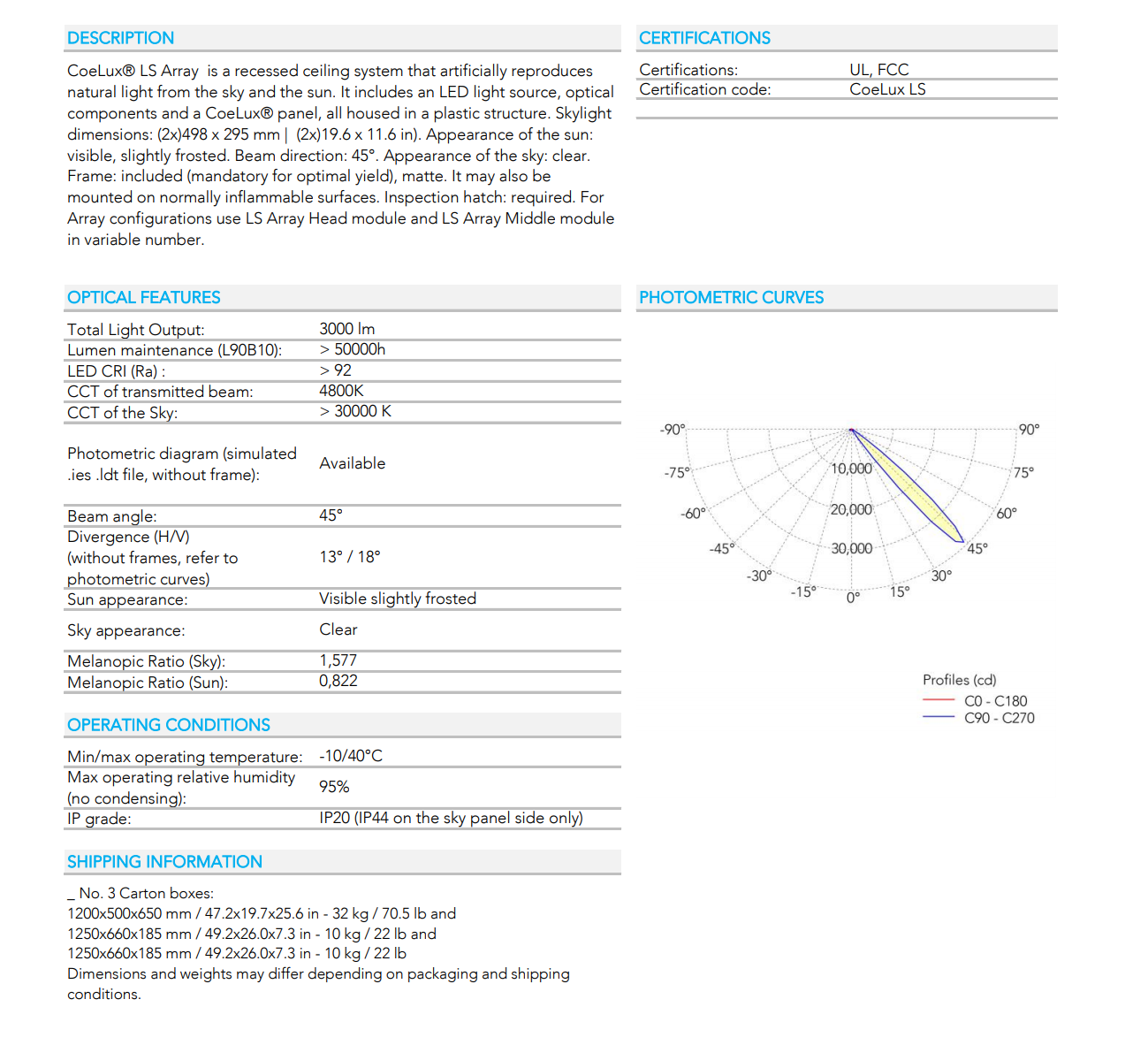

Light source LED 80W / 3000lm
Light output control Dimmable by DALI
CCT CRI (Ra) >92
CCT of transmitted beam 4800K
Lumen maintenance (L90B10) >50000h
Light beam angle 45
IP grade IP20 (IP44 on the sky panel side only)
